Description
Heavy duty, high capacity 400-450mm floor saw. This rugged machine meets
demands of tough materials and applications for long and trouble free
operations.
The Ranger 450 is a very productive saw for all floor and road applications
in concrete and asphalt.
Accurate control and good stability ensures smooth cutting and reduces
blade wear. An ideal machine for rental and endurance.
- Accurate easy moving 'Hand Wheel' depth adjustment
- Corrosion resistant water tank 50 litres
- Easy to operate and accelerate-efficient weight distribution
- Central lift points and handles fitted as standard
- Cutting depth gauge with indicator for both 400 & 450mm blades and cutting pointer guide fitted as standard
- 13Hp Honda GX390 Petrol engine
| Ref | Model | Motor Power (Hp/kW) | Blade Size (mm) | Max. Depth of Cut (mm) | Width (mm) | Height (mm) | Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| RAN01 | Ranger 450 Floor Saw Honda GX390 | 11.8 / 8.7 | 400 x 25.4 450 x 25.4 | 120 160 | 650 | 950 | 1250 | 126 |

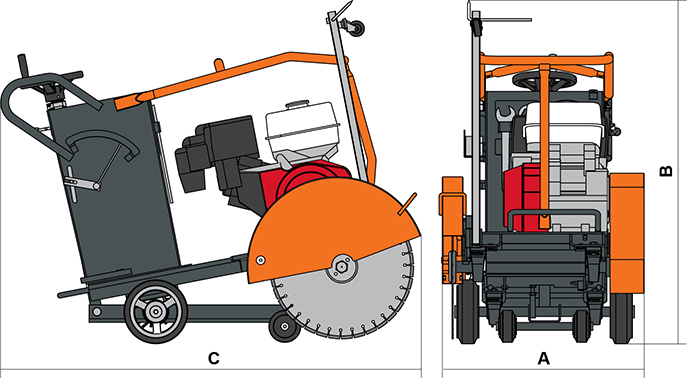

| STATIC DIMENSIONS | ||
 | ||
| Ranger 450 | ||
| A - Machine Width | (mm) | 650 |
| B - Machine Height | (mm) | 950 |
| C - Machine Length | (mm) | 1250 |
