PCX 60A
PCX 60A

Multi-Purpose Forward Plate Compactor

Multi Purpose Forward Plate Compactor. The ultimate combination of weight, power and versatility enables this Compactor Plate to perform in a multitude of applications to the highest standard.
PCX 60A image 0 PCX 60A
Advantages
  • 11kN high performance Vibrator for maximum compaction and excellent travel speeds.
  • Sealed oil filled vibrator with top quality bearings for reliability and durability.
  • Ergonomic operator handle for precise manouverability, includes Pull-Back bar.
  • Thickener Plate in rear of Baseplate for increased durability.
  • Specially engineered Fabricated Baseplate designed to eradicate Track marks on asphalt.
  • Collapsable handle for easy storage and transportation.
  • 3 mount HAV system for reduced HAV levels and improved usage time.
  • Optional Easy-Fit 12-litre Water Tank & Easy-Clean Spraybar system.
  • Durable metallic Water Control Tap for high flow rate.
  • Low HAV handles that still allow precision control.
  • Optional integrated Easy-Fit Wheel Kit.
  • Handle Latch for increased stability whilst operating the Wheel Kit.
Ref Model

Motor
Power
(Hp - kW)

Plate
Size
(mm)

 Static
Pressure
(kg/m2)		 Max.
Gradient
(°)		 Centrifugal
Force
(kN)		 Travel
Speed
(m/min)		 Vibration
Level
(m/sec2)		 Weight
(kg)
PCU02 PCX 60A Honda Petrol 4.0 - 3.0 350 x 400 565 20 11 25 4.9*  68.5**

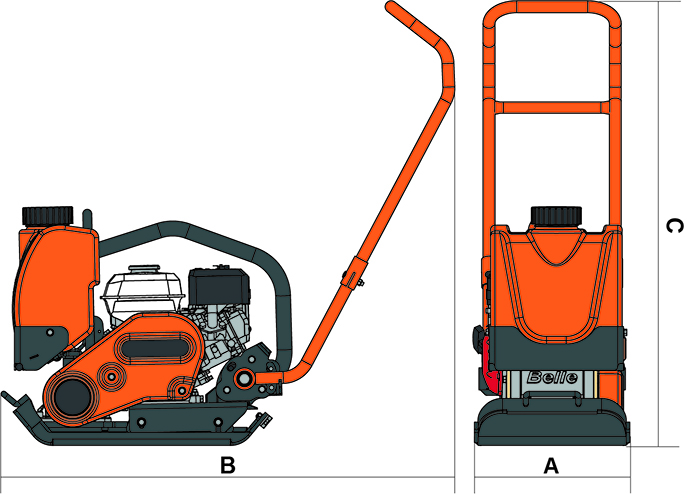

STATIC DIMENSIONS

    PCX 60A
A - Width (mm) 350
B - Length - Operation (mm) 1010
C - Height- Operation (mm) 1010
Product Brochure
 PCX 60A product brochure - en

Ref Model Weight
(kg)		 Buy Now
OPP/87/DIO Detachable Water Kit 3.0

OPP/82/DIOOPP/01/DIOOPP/01/DIOOPP/65/DIO Block Paving Pad PCLX 320Block Paving 1.6

OPP/104/DIO Detachable Wheel Kit 3.7

Click here for spare parts.
