PCLX 320 & 400
PCLX 320 & 400

Midweight Plate Compactors

Midweight professional compaction plates with low Hand Arm Vibration and high performance compaction. The PCLX is designed for contracting and rental use.
PCLX 320 & 400 image 0 PCLX 320 & 400
Advantages
  • Low Hand-Arm Vibration design for longer safe usage times.
  • Tubular frame designed to protect vulnerable components.
  • Patented baseplate design for optimised speed and manoeuvrability.
  • Lightweight yet durable for easy transport.
  • Removable 12 litre water tank features a quick- release design.
  • Fitted with manual handling points.
  • Oil Sealed lubricated Bearings for extended service life.
  • High power 13kN vibration force.
  • Engineered to be robust and durable for rental and heavy contractor usage.
  • Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.
Ref Model Engine
Power
(hp/kW)		 Plate Size
WxL
(mm)		 Static
Pressure
(kg/m2)		 Centrifugal
Force
(kN)		 Travel
Speed
(m/min)		 Vibration
(m/sec2)		 Weight
(kg)
LC3251 Orange PCLX320 petrol
Honda GXR120		 3.1 / 2.3 320 x 574 398 13 20 2.42** 62*
LC4051 Orange PCLX400 petrol
Honda GXR120		 3.1 / 2.3 400 x 574 336 13 20 2.48** 66.5*

* Water Spray Kit (2kg) not included.

** OPERC independant testing / vibration levels tested to BS5349 using EN500-4

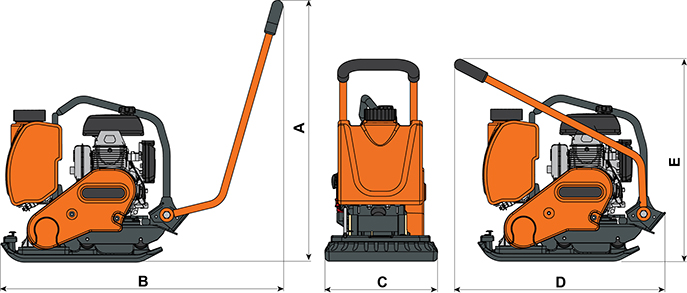

STATIC DIMENSIONS


    PCLX 320 PCLX 400
A - Height - Operation (mm) 927 927
B - Length - Operation (mm) 990 990
C - Width (mm) 320 400
D - Length - Storage (mm) 790 790
E - Height - Storage (mm) 790 790
Product Brochure
 PCLX 320 & 400 product brochure - en

Currently no videos for this product



Ref Model Weight
(kg)		 Buy Now
OPP/01/DIO Block Paving Pad PCLX 320 2.3

OPP/82/DIOOPP/01/DIOOPP/01/DIOOPP/02/DIO Block Paving Pad PCLX 320Block Paving Pad PCLX 400 3.5

OPP/60/DIO Detachable Wheel Kit 2.5

OPP/51S/DIO Water Kit PCLX 320 7.0

OPP/54S/DIO Water Kit PCLX 400 7.0

Click here for spare parts.
