Description
Professional compaction plates with low hand arm vibration and high performance compaction. The robust PCLX compaction plates are designed for contracting and rental usage.
● Low Hand-Arm Vibration design for longer safe usage times.
● Powerful, reliable Honda GX160 and Loncin H135 petrol engine options.
● High performance 13kN vibration unit gives excellent compaction force and travel speeds.
● Tubular frame designed to protect vulnerable components.
● Baseplate designed for optimal speed and manoeuvrability.
● Lightweight yet durable for easy transport.

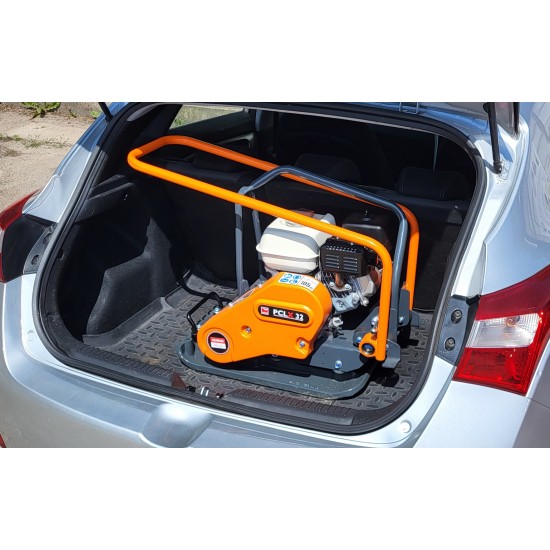

● Fits in a standard car boot when the handle is folded.
● Fitted with manual handling points.
● Engineered to be robust and durable for rental and heavy contractor usage.
● Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.
● Optional, removable 12-litre water tank features a quick-release design.
● Optional wheel kit to aid on-site transportation available.
● Optional paving pad for block paving applications available.
● Customer colour options available.
| Description | Part Number |
| Block Paving Pad - PCLX 32 | OPP/01/DIO |
| Block Paving Pad - PCLX 40 | OPP/02/DIO |
| Water Kit - PCLX 32 | OPP/51S/DIO |
| Water Kit - PCLX 40 | OPP/54S/DIO |
| Detachable Wheel Kit | OPP/60/DIO |
| Model | Part Number | Engine Power (HP) - (kW) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Frequency (Hz) | Max. Travel Speed (m/min) | Dimensions W x L x H (mm) | Vibration Level (m/sec2) | Weight (Kg) |

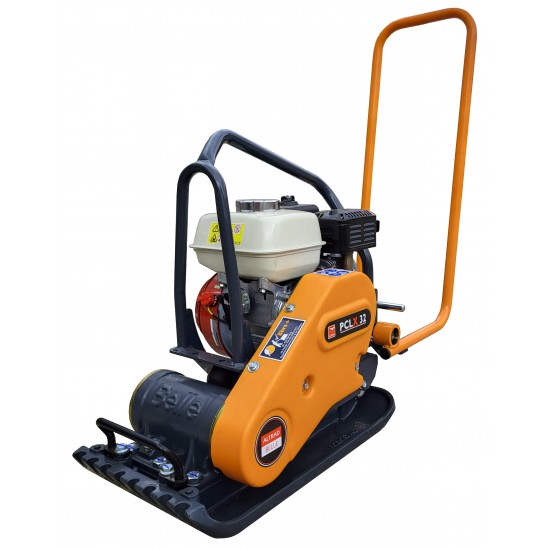

| PCLX 32 - Honda GX160 Petrol | LC3276 | 4.8 - 3.6 | 416 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 66 |
| PCLX 32 - Loncin H135 Petrol | LC3274 | 3.5 - 2.6 | 416 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 64 |
| PCLX 32 - Honda GX160 Petrol & Water Kit | LC3276W | 4.8 - 3.6 | 416 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 68 |
| PCLX 32 - Loncin H135 Petrol & Water Kit | LC3274W | 3.5 - 2.6 | 416 | 13 | 101 | 20 | 320 x 950 x 935 | 2.49 | 66 |

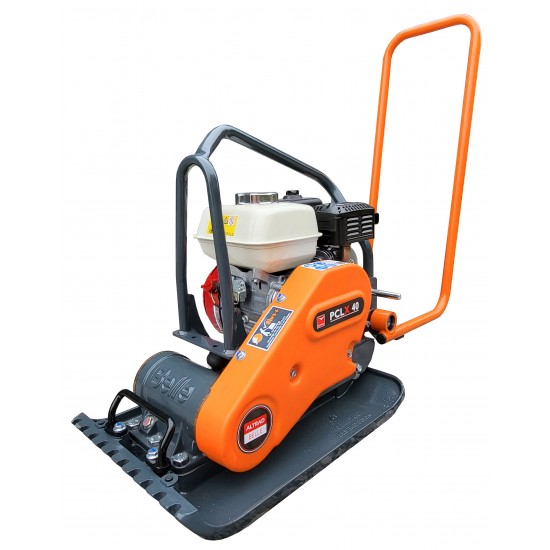

| PCLX 40 - Honda GX160 Petrol | LC4075 | 4.8 - 3.6 | 350 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 70.5 |
| PCLX 40 - Loncin H135 Petrol | LC4073 | 3.5 - 2.6 | 350 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 68.5 |
| PCLX 40 - Honda GX160 Petrol & Water Kit | LC4075W | 4.8 - 3.6 | 350 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 72.5 |
| PCLX 40 - Loncin H135 Petrol & Water Kit | LC4073W | 3.5 - 2.6 | 350 | 13 | 101 | 20 | 400 x 950 x 935 | 2.50 | 70.5 |
