New
PCLX 13/33
- Model: PCLX 13/33
- Weight: 68.00kg
- Dimensions: 1,093.00mm x 1,069.00mm x 330.00mm
£0.00
Ex Tax: £0.00
Description

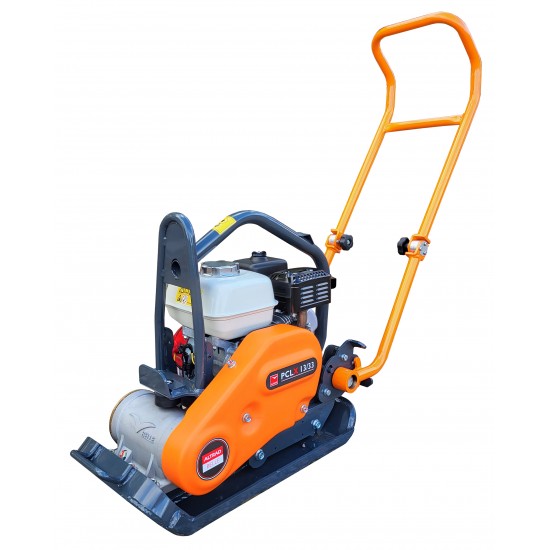

Multi-purpose forward plate compactor. The ultimate combination of weight, power and versatility enables this compactor plate to perform in a multitude of applications to the highest standard. Optional Wheel Kit, Water Kit and Paving Pad available.
- 13kN high performance Vibrator for maximum compaction and excellent travel speeds.
- Sealed oil filled vibrator with top quality bearings for reliability and durability.

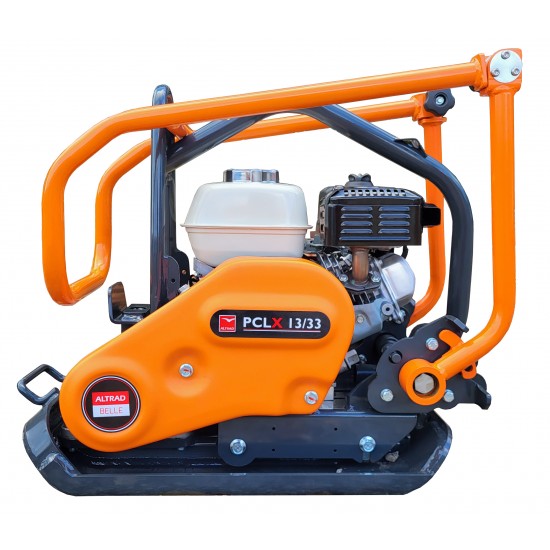

- Ergonomic operator handle for precise manouverability, includes Pull-Back bar. Designed to be collapsible for easy storage and transportation.
- Thickener Plate in rear of Baseplate for increased durability.
- Specially engineered Fabricated Baseplate designed to eradicate ‘Track’ marks on asphalt.
- 3 mount HAV system for reduced HAV levels and improved usage time.

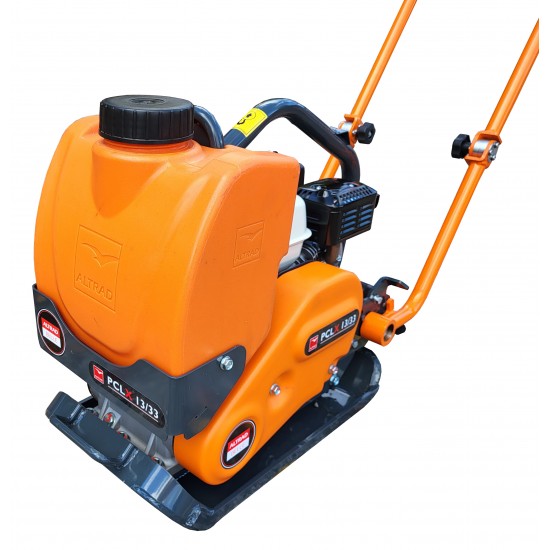

- Optional ‘Easy-Fit’ 12-litre Water Tank & ‘Easy-Clean’ Spray bar system.
- Durable metallic Water Control Tap for high flow rate.
- Low HAV handles that still allow precision control.

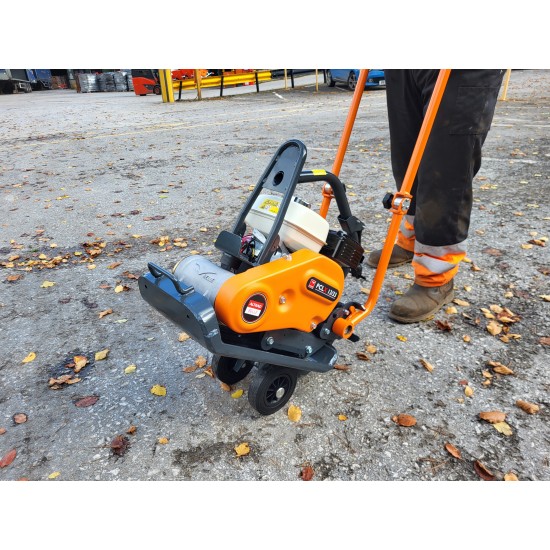

- Optional detachable ‘Easy-Fit’ Wheel Kit.
- Choice of Honda or Loncin petrol engines.

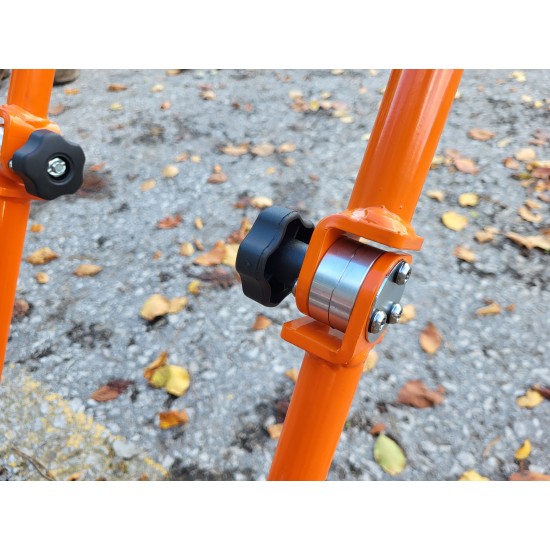

- Handle Latch for increased stability whilst operating the Wheel Kit.
| Ref | Model | Engine Power (Hp / kW) | Plate Contact Area WxL (mm) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Travel Speed (m/min) | Vibration (m/sec2) | Weight (kg) | Noise Level |
|---|---|---|---|---|---|---|---|---|---|
| LX3367 | PCLX13/33 Petrol Honda GX120 | 3.3 / 2.4 | 300 x 400 | 567 | 13 | 25 | 3.2** | 68* | 105 |
* Weight does not include Water Kit or Wheel Kit.
** Vibration levels tested to BS5349 using EN 500-4
| STATIC DIMENSIONS | |||
| |||
