  • Model: PCLX 12/40E
  • Weight: 50.00kg
  • Dimensions: 1,050.00mm x 380.00mm x 875.00mm
£0.00
Ex Tax: £0.00

Description

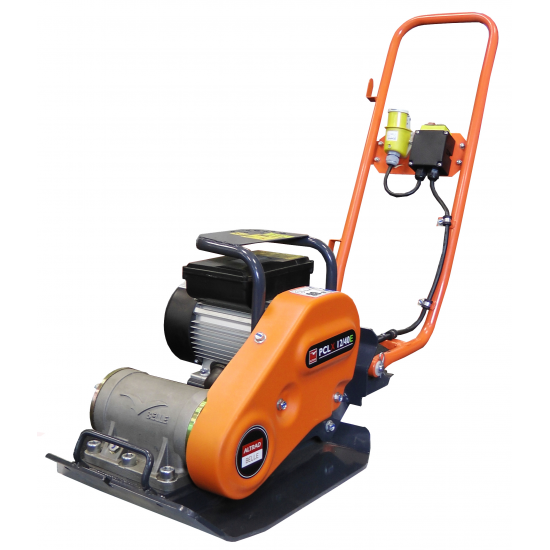

Lightweight Electric Plate Compactor

A lightweight professional compaction plate with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.
  • High performance 12kN vibration unit for excellent travel speed.
  • High Compaction Force reduces operating times.
  • Environmentally friendly, 1.5kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
  • Low HAV design allows longer, safe usage times.
  • Efficient Electric Motor is ideal for night time and urban usage.
  • Centrifugal Clutch for soft start & reduced current surge.
  • Professional 16amp power inlets for effective cable management.
  • Sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Front & rear manual handling points for easy 2-man lift.
  • Removable, ultra low folding operator's handle for ease of transportation and storage.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Engineered to be robust and durable for rental and heavy contractor use.
  • No fuel or engine maintenance and higher return on investment.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection guard.
  • Block Paving Pad option available.


NOTE:
 For use with Extension Cables up to 25M in length - Extension Cable is not supplied with this product.

RefModel

Motor
Power
(Hp - kW)

Minimimum
Transformer
Size (kVA)
Static
Pressure
(kg/m2)
Max.
Gradient
(°)
Centrifugal
Force
(kN)
Travel
Speed
(m/min)
Vibration
Level
(m/sec2)
Weight
(kg)
Buy Now
LCE4001PCLX 12/40E 110v 50Hz2.0 - 1.53.33882012243.9750

LCE4002PCLX 12/40E 230v 50Hz2.0 - 1.5N/A3882012243.9750

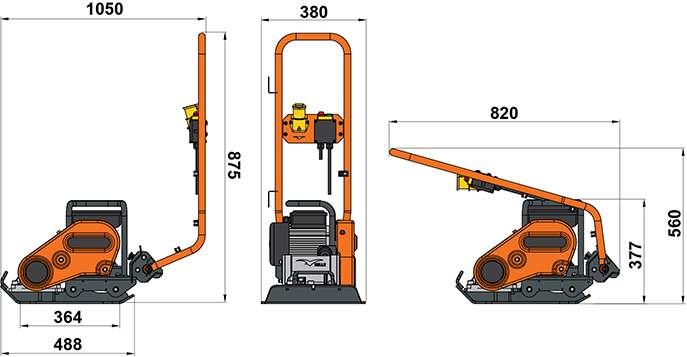

STATIC DIMENSIONS
