  • Model: PCEL 400E
£0.00
Ex Tax: £0.00

Description

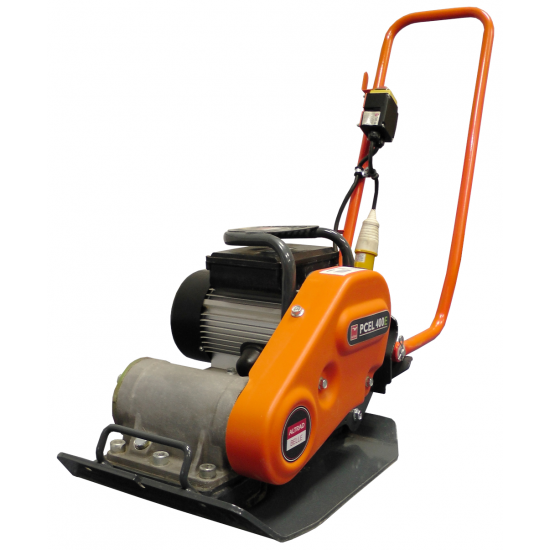

Lightweight Electric Plate Compactor

A lightweight durable compaction plate with low Hand Arm Vibration and high performance compaction. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.
  • Low Hand Arm Vibration design for longer, safe usage.
  • Environmentally friendly with zero exhaust emissions.
  • High performance 10.5kN vibration unit for good travel speed.
  • Sealed oil-filled vibrator with top quality bearings for reliability and durability.
  • Front and rear manual handling points for an easy 2-man lift.
  • Removable and ultra low folding operators handle for ease of transportation and storage.
  • 8mm thick long life base plate for optimum compaction and reliability.
  • Class 1 Earthed Appliance.
  • Integrated Motor protection guard.
  • Block Paving Pad option available.
RefModelEngine
Power
(hp/kW)
Minimum
Transformer
Size (kVA)
Plate Size
WxL
(mm)
Static
Pressure
(kg/m2)
Max.
Gradient (°)
Centrifugal
Force
(kN)
Travel
Speed
(m/min)
Vibration
(m/sec2)
Weight
(kg)
ELE4001PCEL 400E - 110v 50Hz Electric0.8 - 0.63.3380 x 3643762010.5184.43*48.5
ELE4001PCEL 400E - 110v 50Hz Electric0.75 - 0.55N/A380 x 3643542010.5184.43*48.5
