Description

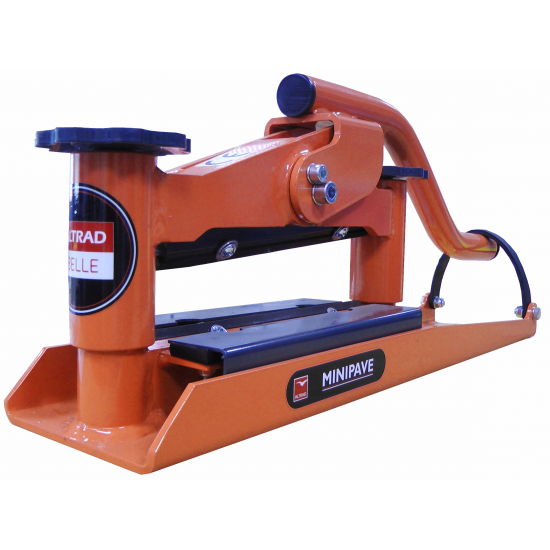

The first block splitter designed specifically for block paving. The Minipave
is the smallest, lightest product available for splitting standard 100 x
200mm blocks and is ideal for domestic landscaping and small commercial
projects where portability makes the operators job quicker and easier.
- Safe and simple operation - makes beginners into experts.
- No engine fumes.
- No dust created during the cutting process.
- No noise pollution.
- Works at floor level - faster working, you don't have to get up to cut.
- Straight and accurate splitting - less wastage.
- Four edge blade - increased expendable life.
- Composite bearings - maintenance free operation.
- Compact size - helps transportation and storage.
- Lightweight - easy to handle.
- Heavy duty - for the reliable service you expect from Altrad Belle.
Ref | Model | Cut Force (Kg - kN) |
Blade Type |
Cam Movement |
Adjustment Screws (mm) |
Block Depth (mm) |
Max. Cut Length (mm) |
Weight (kg) |
---|---|---|---|---|---|---|---|---|
155.9.000 | Minipave Block Splitter (c/w Blades) |
3200 - 31.4 | 2 off 8mm square section 250mm long |
Block clearance 3mm - Cutting 2mm |
Fast Acting - Trapezoid 40mm |
Max 87mm, Min 47mm |
250 | 18 |
