  • Model: RTX Rammers
£0.00
Ex Tax: £0.00

Description

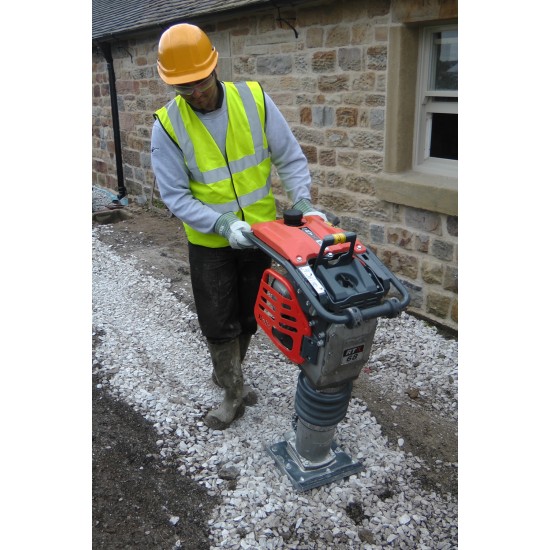

A comprehensive range of 4 stroke Honda petrol & Yanmar diesel engine Trench Rammers. The RTX Rammers feature excellent balance for easy control and high level compaction.
  • Xtra power for use on cohesive materials & gradients.
  • Xtra strong, durable design.
  • Low Hand-Arm Vibration.
  • Triple-Filtration Air Cleaner System (Duel-Filtration on Diesel model).
  • Duel-Filtration Fuel System.
  • Swing-Out engine protection for easy access to maintenance points (60, 68 & 70 models only)
  • Carburettor Primer Bulb for easy start in any conditions (Petrol engine only)
  • Low-maintenance leg with Oil Level Sight Glass.
  • Lower Grab Handle and Front Roller for easy transportation. Both easily replaceable.
  • Wooden & Plastic Foot options, with various widths available.
  • Service Kits available.
  • Wheel Kit & Transport Trolley options available.
  • Hourmeter option available.
  • Spark Arrester option available (80D only)
  • Customer colour options (60, 68 & 70 models only).
ModelPart NumberEngine Power
(Hp) - (kW)
Blows per
Minute
Carburettor
Type
Impact Force
(kN)

Amplitude
(mm)

Frequency
(Hz)
Weight
(kg)
RTX 50R
Honda GX100 Petrol
230mm Foot
RTX50H22303.6 - 2.7450-660Diaphragm12.5521157.7
RTX 60R
Honda GX100 Petrol
165mm Foot
RTX60H2165S3.6 - 2.7450-660Diaphragm13.6521160
RTX 60R
Honda GX100 Petrol
230mm Foot
RTX60H2230S3.6 - 2.7450-660Diaphragm13.6521160
RTX 60R
Honda GX100 Petrol
280mm Foot
RTX60H2280S3.6 - 2.7450-660Diaphragm13.6521160
RTX 68R
Honda GXR120 Petrol
280mm Foot
RTX68H2280S3.6 - 2.7450-660Diaphragm16521170
RTX 70R
Honda GXR120 Petrol
280mm Wooden Foot
RTX70H2280S3.6 - 2.7450-700Diaphragm18521172
RTX 80D
Yanmar L48 Diesel
280mm Foot
RTX80Y2804.7 - 3.5450-600Injection20.5521086

* All Foot Widths are available for each RTX Rammer model.



DescriptionPart NumberRTX 50RTX 60RTX 66RTX 68RTX 74RTX 80DBuy Now
**Wooden Foot Assembly, W = 165mm980/02600YesYesYesYesYesYesClick Here To Buy Now
**Wooden Foot Assembly, W = 230mm980/02700YesYesYesYesYesYesClick Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy NowClick Here To Buy Now
**Wooden Foot Assembly, W = 280mm980/02800YesYesYesYesYesYesClick Here To Buy Now
**Plastic Foot Assembly, W = 165mm980/03300YesYesYesYesYesYesClick Here To Buy Now
**Plastic Foot Assembly, W = 230mm980/02400YesYesYesYesYesYesClick Here To Buy Now
**Plastic Foot Assembly, W = 280mm980/02500YesYesYesYesYesYesClick Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mmOPRA/08/DIOYesYesYesYesYesYesClick here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 80mm, H = 260mmExtension Foot, W = 80mm, H = 160mmOPRA/08/DIOOPRA/09/DIOYesYesYesYesYesYesClick Here To Buy Now
Extension Foot, W = 100mm, H = 325mmOPRA/05/DIOYesYesYesYesYesYesClick Here To Buy Now
Extension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 325mmExtension Foot, W = 100mm, H = 160mmOPRA/13/DIOYesYesYesYesYesYesClick Here To Buy Now
Extension Foot, W = 165mmOPRA/06/DIOYesYesYesYesYesYesClick Here To Buy Now
Wheel KitOPRA/04/DIOYesYesYesYesYesYesClick Here To Buy Now
Hour MeterOPRA/03/DIOYesYesYesYesYesYesClick Here To Buy Now
Transport TrolleyOPRA/10/DIOYesYesYesYesYesYesClick Here To Buy Now

**Comes complete with fasteners for attaching to the Foot to the Rammer Leg.

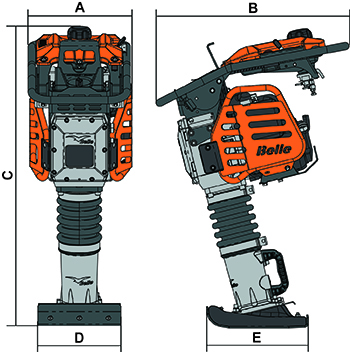

STATIC DIMENSIONS




  RTX 50RTX 60CRTX 60RTX 68RTX 70RTX 80D
A - Width(mm)345345345345345425
B - Length(mm)670670705705714700
C - Height(mm)975975975104010401081
D - Shoe Width*(mm)230165165280280280
E - Shoe Length*(mm)335335335335335335
