Description

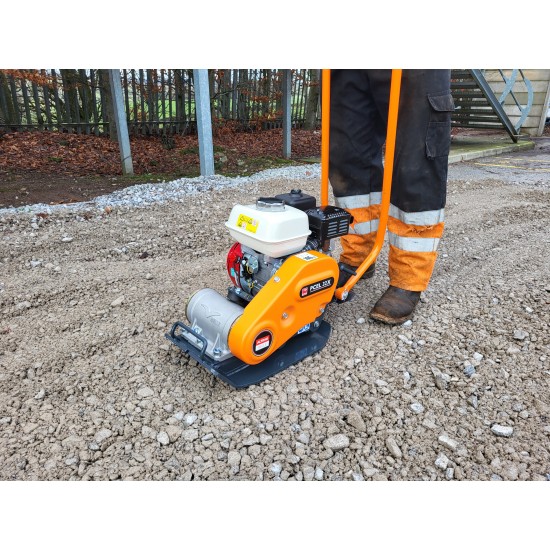

Extra lightweight, single direction plate compactor specially designed for confined areas of granular soil in narrow trenches, interlocking blocks, footpath construction and maintenance, trenches and pipelines, sportsgrounds, landscaping and groundwork engineering.

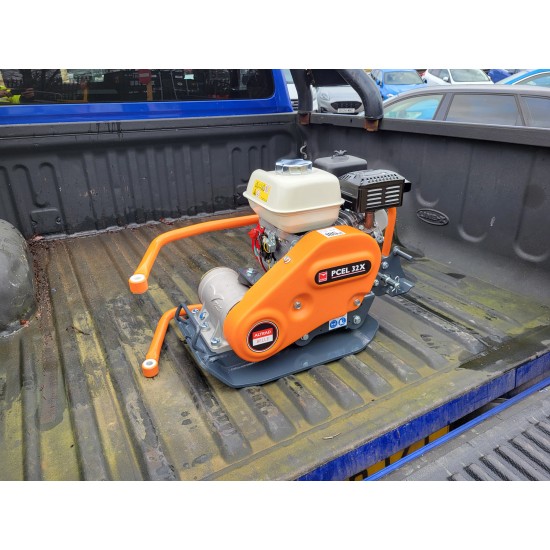

- Ultra compact design
- Removable operating handle for easy storage, handle folds very low as diagram shows
- Front and rear lift handles
- 8mm thick plate
| Ref | Model | Engine Power (hp/kW) | Plate Size WxL (mm) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Travel Speed (m/min) | Vibration (m/sec2) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|

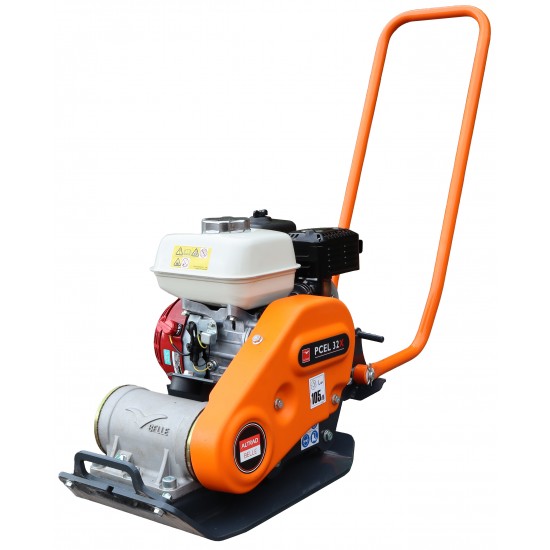

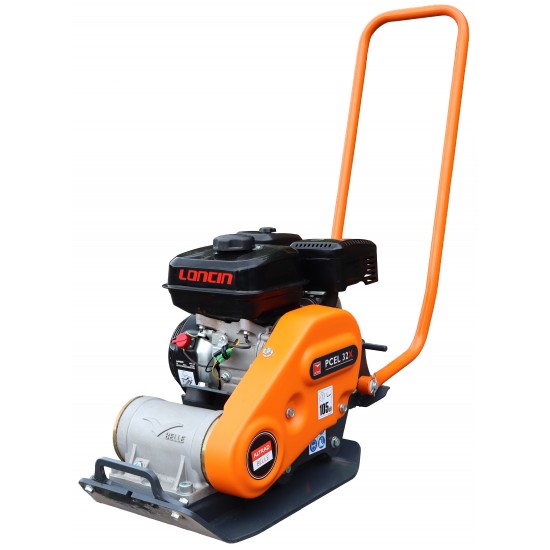

| ELX3201 Orange | PCEL 320X petrol Honda GXR120 | 3.1 / 2.3 | 320 x 364 | 425 | 11 | 23 | 4.43 | 49 |
ELX3203 Yellow |
| STATIC DIMENSIONS | ||
 | ||
| MPC 300 | ||
| A - Height - Operation | (mm) | 980 |
| B - Length - Operation | (mm) | 720 |
| C - Width | (mm) | 320 |
| D - Length - Storage | (mm) | 830 |
| E - Height - Storage | (mm) | 545 |
