Description
Advanced range of high performance, heavy duty, mobile site mixers. The XT range adds even more durability to the proven Premier mixers. To match site requirements four drum sizes are available to give different batch mixing capacities. All sizes share the same advantages built in as standard. Ideal for use with the Altrad Belle Warrior Wheelbarrow
- Extra heavy-duty and robust chassis designed to withstand the worst site conditions.
- Extra rigid and reinforced drum to prevent distortion.
- Heavy duty wheels designed to operate in the toughest of conditions.
- Stage 5 compliant Yanmar L48 Electric-Start Diesel engine.
- Foot operated tip-lock and large tip wheel for added safety and control with large mixes.
- Enhanced mixing performance with ‘Quick Mix’ replaceable bolt in paddles.
- Easy-to-clean tubular chassis.
- New wider profile wheels for extra stability.
- Sealed, heavy-duty high specification gearbox reduced maintenance.
- Lockable stay cool engine compartment for security and lid down operation.
- Extra short wheel base on 100XT and 150XT to fit on compact vehicle tail lifts.
| Model | Part Number | Engine Power (Hp) - (kW) | Drum Volume (ltr) | Mixing Output/ Mixing Volume (ltr) | Drum Speed (rpm) | Paddle Type | Noise Level (dB(A)) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| Premier 100XT | ||||||||
| 100XT Yanmar Diesel Electric Start | PM20V | 3.4 - 2.5 | 250 | 110 | 19 | Gated Paddle Design | 99 | 335 |
| 100XT 110v Electric | PM08 | 2.0 - 1.5 | 87 | 305.5 | ||||
| 100XT 230v 1ph Electric | PM06 | 303.5 | ||||||
| Premier 150XT | ||||||||
| 150XT Yanmar Diesel Electric Start | PM38V | 3.4 - 2.5 | 300 | 160 | 19 | Gated Paddle Design | 99 | 344 |
| 150XT 110v Electric | PM28 | 2.0 - 1.5 | 87 | 314.5 | ||||
| 150XT 230v 1ph Electric | PM45 | 312.5 | ||||||
| Premier 175XT | ||||||||
| 175XT Yanmar Diesel Electric Start | PM39V | 3.4 - 2.5 | 350 | 180 | 19 | Gated Paddle Design | 99 | 350 |
| 175XT 110v Electric | PM31 | 2.0 - 1.5 | 87 | 322.5 | ||||
| 150XT 230v 1ph Electric | PM46 | 320.5 | ||||||
| Premier 200XT | ||||||||
| 200XT Yanmar Diesel Electric Start | PM40V | 3.4 - 2.5 | 400 | 220 | 19 | Gated Paddle Design | 99 | 353.5 |
| 200XT 110v Electric | PM42 | 2.0 - 1.5 | 87 | 325 | ||||
| 200XT 230v 1ph Electric | PM47 | 323 | ||||||

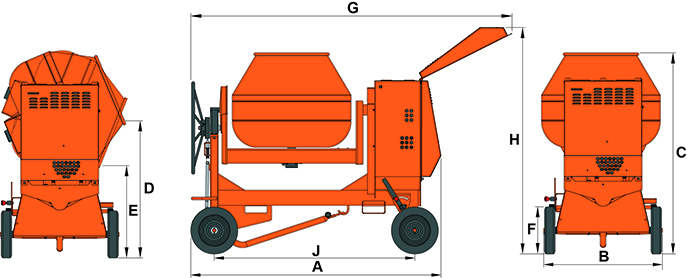

| STATIC DIMENSIONS | |||||
 | |||||
| Premier 100XT | Premier 150XT | Premier 175XT | Premier 200XT | ||
| A - Overall Length | (mm) | 1765 | 1765 | 1890 | 1890 |
| B - Overal Width | (mm) | 900 | 900 | 900 | 900 |
| C - Overall Height | (mm) | 1475 | 1560 | 1520 | 1590 |
| D - Loading Height | (mm) | 1025 | 1065 | 1000 | 1050 |
| E - Discharge Height | (mm) | 710 | 656 | 650 | 615 |
| F - Diameter of Wheels | (mm) | 350 | 350 | 350 | 350 |
| G - Overal Length (Door Open) | (mm) | 2085 | 2085 | 2390 | 2390 |
| H - Overall Height (Door Open) | (mm) | 1950 | 1950 | 1950 | 1950 |
| J - Wheel Base | (mm) | 1295 | 1295 | 1520 | 1520 |
