Description
Heavy duty range of 59kN reversible plate compactors built to withstand the harshest site conditions. With improved baseplate design for excellent gradeability & increased travel speeds and a higher compaction force for shorter usage times and deeper compaction.
Complete with Hour meter as standard on Diesel Electric Start & Petrol models and Extension Width options available for more versatility. The perfect solution for the rental market.
Available with Honda petrol, Hatz diesel or Hatz diesel electric engine options.
- Robust design for long-life and use in the harshest site conditions.
- Petrol & Diesel models to suit all kind of applications.

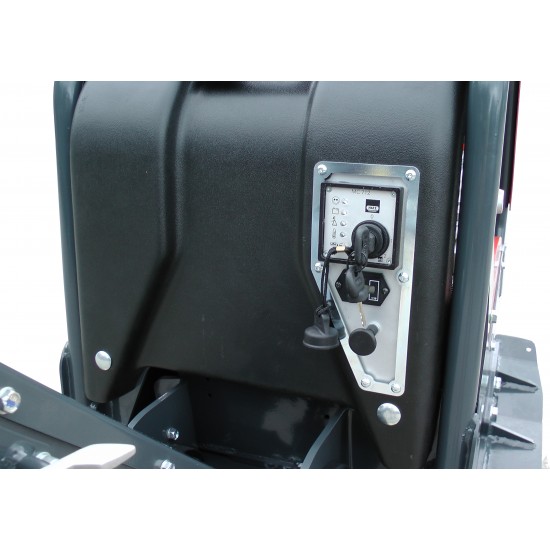

- Electric start with key ignition & LED warning lamps, eliminates need for operator training associated with manual starting (Hatz models only)

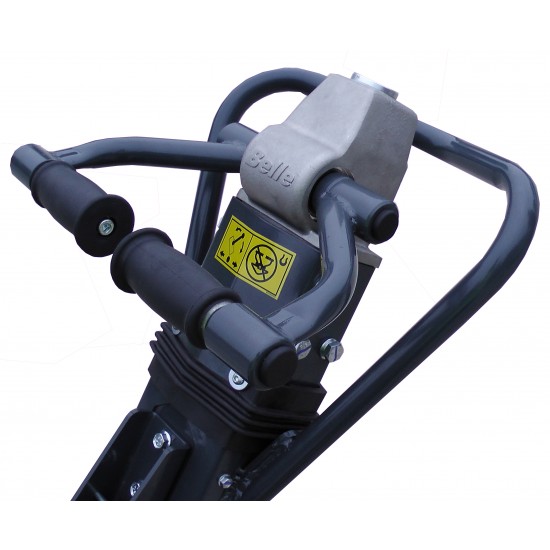

- Control Handle & Additional Fixed Handle with strong locking:- - More positive handling & control. - Reduces shock loading on control handles.
- Angled baseplate for excellent gradability and travel speeds.
- Low HAV handle, safe for operators to use for long periods.
- High Compaction force for fast work and deepcompaction.
- Handle mounted throttle, perfect for the operator.
- High performance battery (Hatz Electric Start only).

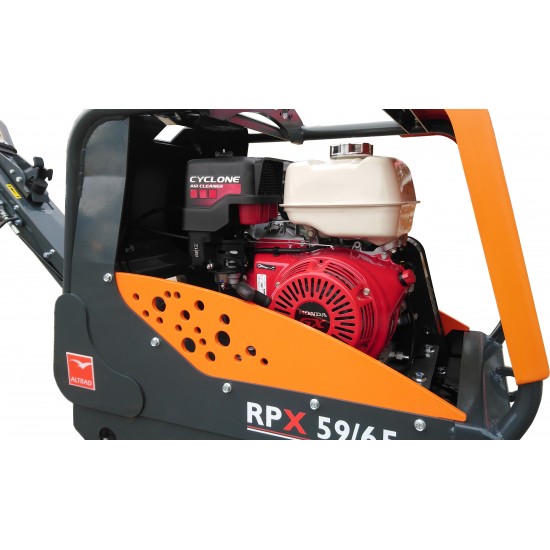

- Cyclone Air Filter as standard on Honda GX390 model.
- Hourmeter as standard on Petrol and Diesel Electric models.
- Specifically designed for hire and rental markets.
- Extension Plates available to give 650mm or 750mm width base plates.
| Description | Part Number | Weight (Kg) |
| 75mm Extension Plates | OPP/106/DIO | 16.6 |
| 125mm Extension Plates | OPP/107/DIO | 24.9 |
| Model | Part Number | Engine Power (Hp) - (kW) | Static Pressure (kg/m2) | Centrifugal Force (kN) | Frequency (Hz) | Max. Travel Speed (m/min) | Dimensions W x L x H (mm) | Vibration Level (m/sec2) | Weight (Kg) |
| RPX 59/65 - Honda GX390 Petrol | 161.9.214 | 11.8 - 8.7 | 1241 | 59 | 70 | 28 | 650 x 1669 x 1066 | 3.1 | 360 |
| RPX 59/65DE - Hatz 1D50 Diesel e/s | 161.9.213 | 10.2 - 7.5 | 1524 | 59 | 70 | 28 | 650 x 1669 x 1066 | 2.4 | 442 |
| RPX 59/75 - Honda GX390 Petrol | 161.9.218 | 11.8 - 8.7 | 1102 | 59 | 70 | 28 | 750 x 1669 x 1066 | 3.1 | 375 |
| RPX59/75DE - Hatz 1D50 Diesel e/s | 161.9.217 | 10.2 - 7.5 | 1344 | 59 | 70 | 28 | 500 x 1205 x 1067 | 2.4 | 457 |

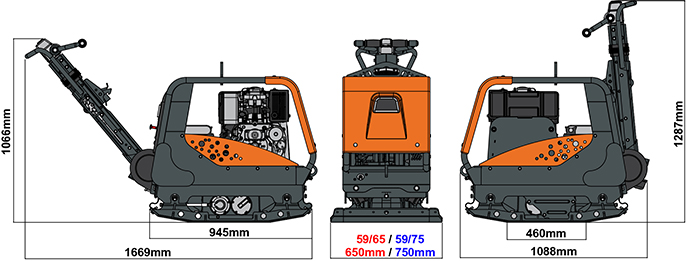

| STATIC DIMENSIONS | |||
 | |||
