Description
Extra lightweight, single direction plate compactor specially designed for confined areas of granular soil in narrow trenches, interlocking blocks, footpath construction and maintenance, trenches and pipelines, sportsgrounds, landscaping and groundwork engineering.
- Low Hand Arm Vibration design for longer, safe usage times.
- High performance 11kN vibration unit for excellent forward travel speed.
- Sealed oil-filled vibrator with top quality bearings for reliability and durability.
- Front and rear manual handling points for an easy 2-person lift.
- Removable and ultra low folding operator’s handle for ease of transportation and storage.
- 8mm thick long life base plate for optimum compaction and reliability.
- Engineered to be robust and durable for rental and heavy contractor use.
- Optional Block Paving Pad available.
- Customer Colour options available.
| Model | Part Number | Engine Power (Hp) - (kW) | Static Pressure (kg/m2) | Max. Gradient (°) | Centrifugal Force (kN) | Max. Travel Speed (m/min) | Vibration Level (m/sec2) | Dimensions W x L x H (mm) | Weight (Kg) |
| PCEL 320X - Honda GXR120 Petrol | ELX3201 | 3.1 - 2.3 | 425 | 20 | 11 | 22 | 4.43 | 320 x 720 x 980 | 49 |

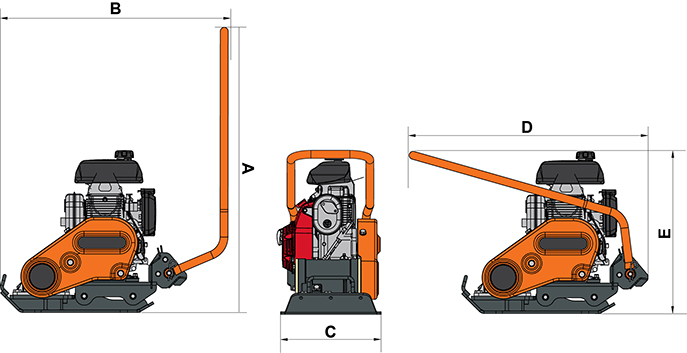

| STATIC DIMENSIONS | ||
 | ||
| MPC 300 | ||
| A - Height - Operation | (mm) | 980 |
| B - Length - Operation | (mm) | 720 |
| C - Width | (mm) | 320 |
| D - Length - Storage | (mm) | 830 |
| E - Height - Storage | (mm) | 545 |
