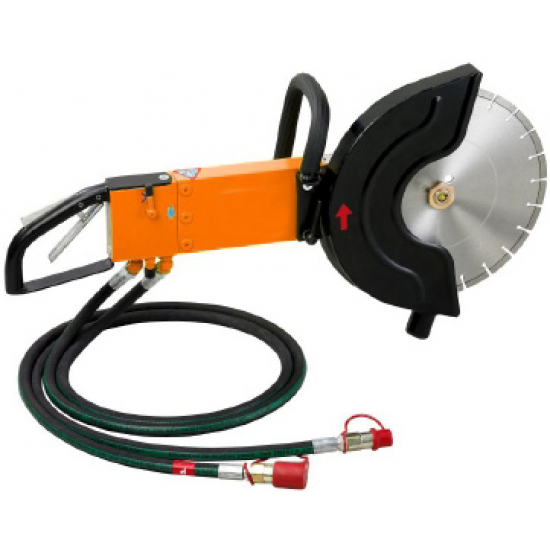

HDC 350 Disc Cutter
- Model: HDC 350 Disc Cutter
£0.00
Ex Tax: £0.00
Description
The Altrad Belle HDC Hydraulic Disc Cutter uses Hydraulic direct drive power (free from chain drive) to maintain constant cutting speeds and torque without belts, pulleys, excessive noise or exhaust fumes.
- 350mm Blade Diameter.
- Simple design with direct drive motor.
- Open visible cutting face.
- High power-to-weight ratio.
- Compact and slim design.
- Cuts 133-160 mm (5 in) depth.
- Works in dust, slurry and underwater.
- Used for cutting Concrete, reinforced concrete, Asphalt, Steel.
- Used with Dry and Wet Diamond Blades and Abrasive Steel Cutting Blades.
| Ref | Model |
Oil Flow |
Max Pressure (bar) |
Revolutions (rpm) |
Speed (m/s) |
Blade Size (mm) |
Arbor Size (mm) |
Cutting Depth (mm) |
3-Axis Vibration Level (m/sec2) |
Sound Power Level (dB(A)) |
Weight inc. |
Service Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDC01 | HDC 350 Hydraulic Disc Cutter |
20 - 30 | 170 | 2500 - 4000 | 46 - 75 | 350 | 25.4 | 133 | 4.9 | 108 | 12 | 13.5 |
