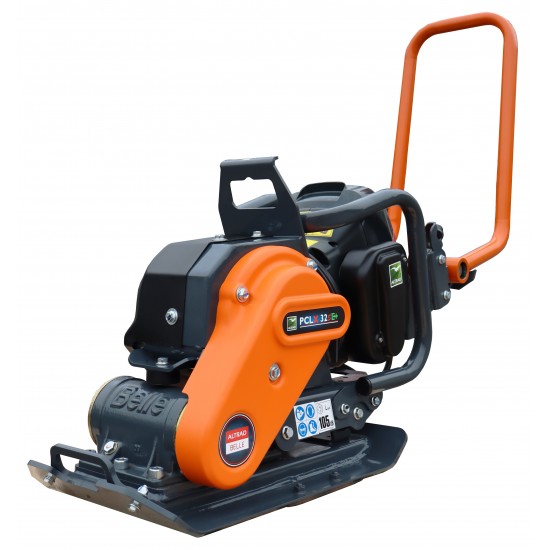

- Model: PCLX 32SE+ 'Streetworks'
Description
The PCLX 32S E+ is a high performance battery-powered lightweight plate compactor with over 1400kg/m2 of compaction, exceeding the HAUC requirements for the reinstatement of footpaths.
Designed for professional and rental use, it features an emission free, 82v Li-ion battery-powered motor. It produces low HAV values and matches the high performance compaction of its petrol powered equivalent, but without the environmental impact...Building a Sustainable Future!
● Engineered to be robust and durable for rental and heavy contractor usage.
● ‘Dual Force’ base plate provides added compaction to meet UK HAUC requirements.
● The baseplate is made from Strenx™ performance steel with a Hardox® wear plate for added strength and durability.
● Lightweight yet durable for easy transport. Fits in a standard car boot when the handle is folded.
● Low Hand-Arm Vibration design for longer safe usage times.
● High performance 13kN vibration unit gives excellent compaction force and travel speeds.
● Environmentally friendly, emission free for use indoors & in poorly ventilated areas such as basements and tunnels.
● Can be operated in environmentally sensitive areas, such as green spaces, nature reserves, national parks, rural railway cuttings and emission controlled urban areas, without any exhaust emissions.
● No routine power unit maintenance eliminates servicing or costly downtime due to repairs.
● Avoid problems with modern fuels. No blocked carburettors.
● Cordless design gives added operational flexibility.
● Quick release / connect 82v battery with digital power level display.
● 82v batteries are interchangeable with the other products in the
● Altrad Belle E+ 82v range, for added convenience and flexibility.
● Baseplate designed for optimised speed and manoeuvrability.
● Fitted with manual handling points.
● Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.
● Optional paving pad for block paving applications available.
● Customer colour options available.
| Model | Part Number | Motor Power & Type (Hp / kW) | Static Pressure (Kg/m2) | Centrifugal Force (kN) | Frequency (Hz) | Max. Travel Speed (m/min) | Dimensions W x L x H (mm) | Vibration Level (m/sec2) | Weight (Kg) |
| PCLX 32SE+ 'Streetworks' - 82v Battery Powered c/w 8Ah Battery & Charger | LX3282P8 | 2.0 / 1.5 Brushless | 1800 | 13 | 101 | 20 | 320 x 1060 x 910 | < 2.5 | *66 |
| PCLX 32SE+ 'Streetworks' - 82v Battery Powered Machine Only | LX3282 | 2.0 / 1.5 Brushless | 1800 | 13 | 101 | 20 | 400 x 1060 x 910 | < 2.5 | *66 |
*weight without batteries included.
Battery - 8Ah
| Model | Part Number | Max. Voltage (v) | Nominal Voltage (v) | Energy Rating (Wh) | Energy Capacity (Ah) | 80% Charge Time (mins) | 100% Charge Time (mins) | Dimensions W x L x H (mm) | Weight (Kg) |
| 82v, 8Ah Li-Ion Battery | OPM/14/FIO | 82 | 72 | 580 | 8 | 28 | 64 | 90 x 120 x 240 | 3.9 |
| Description | Part Number | Weight (Kg) |
| 82v, 8Ah Li-Ion Battery | OPM/14/DIO | 3.9 |
| 82v Battery Charger | OPM/16/DIO | 2.1 |
| Storage Box (Box only - able to store 2 x batteries & 1 x charger) | OPM/19/DIO | - |
| BCS6 E+ - 6-Port Charging Station (click here for more information) | OPM/21/DIO | 19.0 |
| Block Paving Pad - PCLX 32SE+ | OPP/01/DIO | 2.3 |
