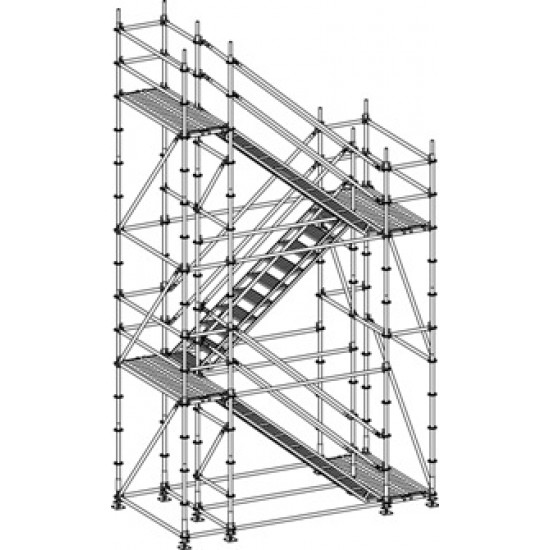

- Model: Plettac Medium Duty Staircase Kit Complete with 4 decks podium.
Description
- Load = TBA
- Lift Heights:-1.00m and 2.00m
- Length of Stairway Bay:- 2.50m
- Width of Landing:- 0.75m or 1.10m
- Length of Landing:- 2.00m or 2.50m
- Footprint Sizes:- length of Stairway + 2 x width of landing
Plettac Medium Duty Staircase (Modular Scaffolding) Kit
Complete with 2 decks podium. The junction between standards, ledgers, transoms and braces is the core of ALTRAD plettac assco multidirectional system scaffolds. The junction enables quick and easy connection of load bearing items as well as reinforcing parts to each other with an enormous rigidity. Flat disks are welded to the standards in equal distances of 50 cm. Ledgers/transoms and braces are connected to these disks by a system of casted heads and wedges. Modular system scaffolds are suitable for industrial scaffold purposes where a bigger variety and larger capacities are required for birdcage scaffolds or special constructions.
| Ref | Description | Length Of Landing (m) | Width Of Landing (m) | Lift Height (m) |
|---|---|---|---|---|
| A10 089 - 3 | Medium Duty Staircase (Modular Scaffolding) Kit Complete with 2 decks podium. | 2.00 or 2.50m | 0.75 or 1.10m | 1.00 or 2.00 |
