Description

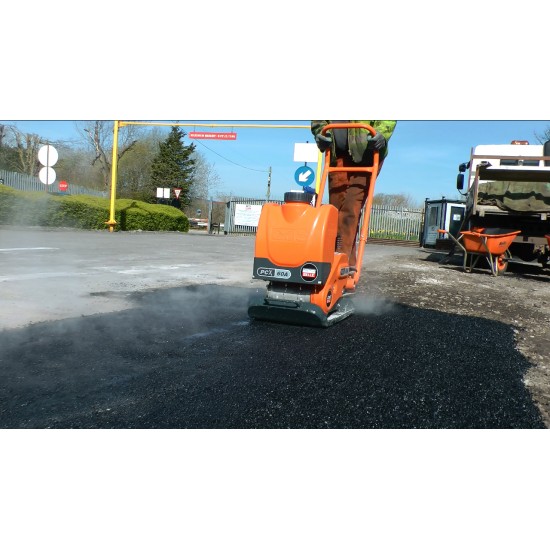

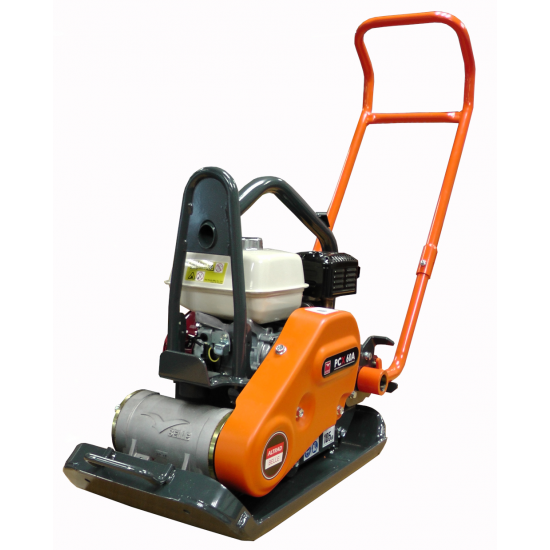

Multi-purpose forward plate compactor. The ultimate combination of weight, power and versatility enables this compactor plate to perform in a multitude of applications to the highest standard.
- 11kN high performance Vibrator for maximum compaction and excellent travel speeds.
- Sealed oil filled vibrator with top quality bearings for reliability and durability.
- Ergonomic operator handle for precise manouverability, includes Pull-Back bar.
- Thickener Plate in rear of Baseplate for increased durability.
- Specially engineered Fabricated Baseplate designed to eradicate Track marks on asphalt.
- Collapsable handle for easy storage and transportation.
- 3 mount HAV system for reduced HAV levels and improved usage time.
- Optional Easy-Fit 12-litre Water Tank & Easy-Clean Spraybar system.
- Durable metallic Water Control Tap for high flow rate.
- Low HAV handles that still allow precision control.
- Optional integrated Easy-Fit Wheel Kit.
- Handle Latch for increased stability whilst operating the Wheel Kit.
| Description | Part Number | Weight (Kg) |
| Detachable Water Kit | OPP/87/DIO | 4.0 |
| Block Paving Pad | OPP/65/DIO | 1.6 |
| Detachable Wheel Kit | OPP/104/DIO | 2.5 |
| Model | Part Number | Engine Power (Hp) - (kW) | Plate Size W x L (mm) | Static Pressure | Max. Gradient (°) | Centrifugal Force (kN) | Travel Speed (m/min) | Vibration Level (m/sec2) | Weight (Kg) |
| PCX 60A - Honda GX160 Petrol | PCU10 | 4.8 - 3.6 | 350 x 400 | 537 | 20 | 11 | 25 | 4.9 | 70.5 |
| PCX 60A - Honda GX160 Petrol c/w Wheel Kit & Water Kit | PCU09 | 4.8 - 3.6 | 350 x 400 | 567 | 20 | 11 | 25 | 4.9 | 74.5 |
| STATIC DIMENSIONS | ||
 | ||
| PCX 60A | ||
| A - Width | (mm) | 350 |
| B - Length - Operation | (mm) | 1010 |
| C - Height- Operation | (mm) | 1010 |
