Description

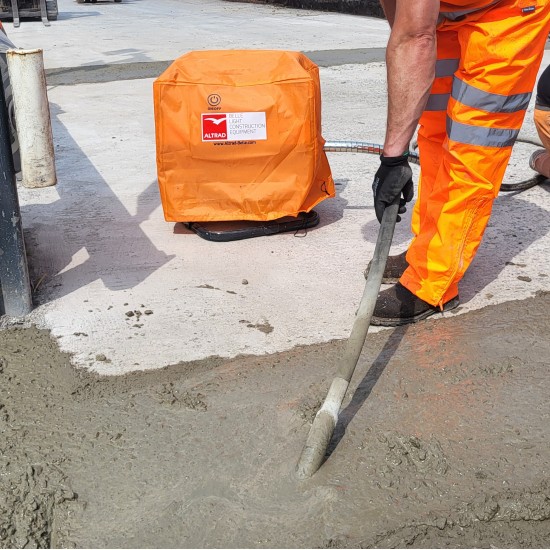

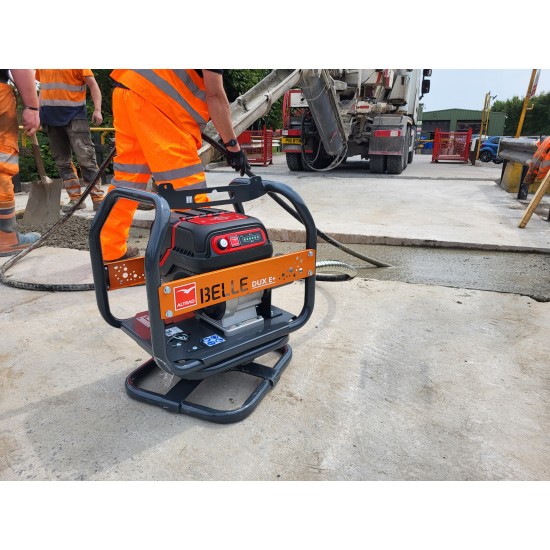

The DUX E+ is a portable, robust poker drive unit designed for heavy site and rental use providing effective air removal from concrete from a portable independent power source.
Pokers are available in a wide range of diameters from 25 to 68mm. As with all products in the Altrad Belle 82v range the battery is interchangeable for convenience and flexibility...Building a Sustainable Future!
● Robust & durable engine protection frame.
● Powerful 82v, 2.2kW digital brushless motor.
● Compact and portable, making it easy to transport.
● Stackable frame with single point lifting to reduce
environmental impact and minimize manual handling risk.
Complete with securing pin for added safety.
● Environmentally friendly, emission free for use indoors & in
poorly ventilated areas such as basements and tunnels.
● Can be operated in environmentally sensitive areas, such
as green spaces, nature reserves, national parks, rural rail
way cuttings and emission controlled urban areas, without
any exhaust emissions.
● Low noise offers increased working hours and usage in
noise restricted areas.
● No routine power unit maintenance eliminates servicing or
costly downtime due to repairs.
● Avoid problems with modern fuels. No blocked carburettors.
● 82v batteries are interchangeable with the other products
in the Altrad Belle E+ 82v range, for added convenience and
flexibility.
● For use with our range of BGA Pokers (25mm - 68mm).
● Optional swivel base available for added versatility.
| Description | Part Number | Weight (Kg) |
| 82v, 5Ah Li-Ion Battery | OPM/13/DIO | 2.8 |
| 82v, 8Ah Li-Ion Battery | OPM/13/DIO | 3.9 |
| 82v Battery Charger | OPM/16/DIO | 2.1 |
| Storage Box (Box only - able to store 2 x batteries & 1 x charger) | OPM/19/DIO | - |
| Swivel Base | OPB/05/DIO | 14.0 |
| Model | Part Number | Motor Power (Hp) - (kW) | Motor Type | Motor Speed (rpm) | IP Rating | Dimensions W x L X H (mm) | Weight (Kg) |
| *DUX E+ - 82v Battery Powered | 165.9.093 | 3.0 - 2.2 | Cramer 82H360S2Q | 2800 | IP44 | 556 x 412 x 474 | **26 |
*does not include batteries.
**weight without batteries included.
| Model | Part Number | Max. Voltage (v) | Nominal Voltage (v) | Energy Rating (Wh) | Energy Capacity (Ah) | 80% Charge Time (mins) | 100% Charge Time (mins) | Dimensions W x L X H (mm) | Weight (Kg) |
| 82v 5Ah Li-Ion Battery | OPP/13/DIO | 82 | 72 | 360 | 5 | 28 | 39 | 90 x 120 x 214 | 2.8 |
| 82v 8Ah Li-Ion Battery | OPP/14/DIO | 82 | 72 | 580 | 5 | 48 | 65 | 90 x 120 x 240 | 3.9 |
