PCX 12/36 & 13/40

PCX 12/36 & 13/40
PCX 12/36 & 13/40
PCX 12/36 & 13/40
PCX 12/36 & 13/40
PCX 12/36 & 13/40
PCX 12/36 & 13/40
PCX 12/36 & 13/40

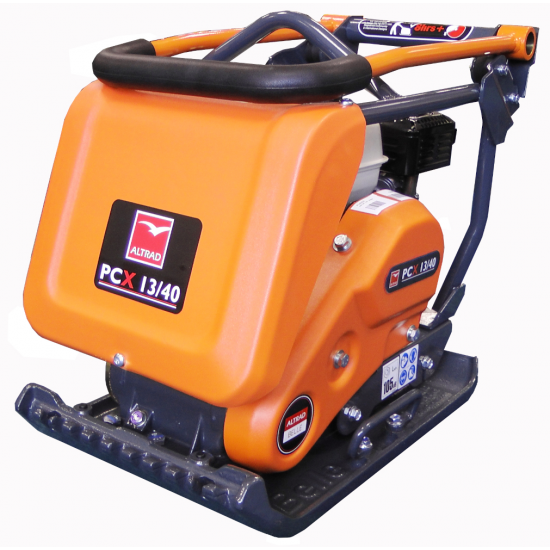

  • Model: PCX 12/36 & 13/40
  • Dimensions: 720.00mm x 360.00mm x 556.00mm
£0.00
Ex Tax: £0.00

Description

Heavyweight, professional compaction plates with low Hand Arm Vibration and very high performance compaction. Designed with a shorter baseplate to offer improved compaction, manoeuvrability and finish.

  • Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
  • Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment.
  • Lifting points and front lift cage offer easier loading and unloading for operator convenience.
  • Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom.
  • The spraybar is fully protected from damage, easily positioned with integral paving pad clamp points.
  • Life lubricated vibration bearings.
  • Optional:- compact wheelkit easily fitted and removed, large capacity water tank is built into the protective frame, block paving pads
RefModelEngine
Model
Engine
Power
(hp/kW)
Plate Size
WxL
(mm)
Static
Pressure
(kg/m2)
Centrifugal
Force
(kN)
Travel
Speed
(m/min)
Vibration
(m/sec2)
Weight
(kg)
Compactor Plates with Water Kit
FC3600EWPCX 12/36Honda GX120
Petrol
3.3 / 2.4360 x 60661112.25204.7484.5
FC4000EWPCX 13/40Honda GX120
Petrol
3.3 / 2.4
400 x 60654213203.287
Compactor Plates without Water Kit
FC3600EPCX 12/36Honda GX120
Petrol
3.3 / 2.4
360 x 60658612.25204.7481
FC3622EPCX 12/36Loncin H135
Petrol
3.5 / 2.6360 x 60658612.25204.7481
FC4000EPCX 13/40Honda GX120
Petrol
3.3 / 2.4
400 x 60652013203.2083.5
FC4020E  PCX 13/40  Honda GX160
Petrol
4.9 / 3.6  400 x 606  520  13 20  3.2 0  83.5
FC4060EPCX 13/40Loncin H135
Petrol
3.5 / 2.6400 x 6065201320-83.5
STATIC DIMENSIONS


  PCX 12/36PCX 13/40
A - Width(mm)360400
B - Height(mm)556556
C - Length(mm)720720
