WPX 3/30
- Model: WPX330L01
- Weight: 44.00kg
- Dimensions: 645.00mm x 432.00mm x 515.00mm
£0.00
Ex Tax: £0.00
Description

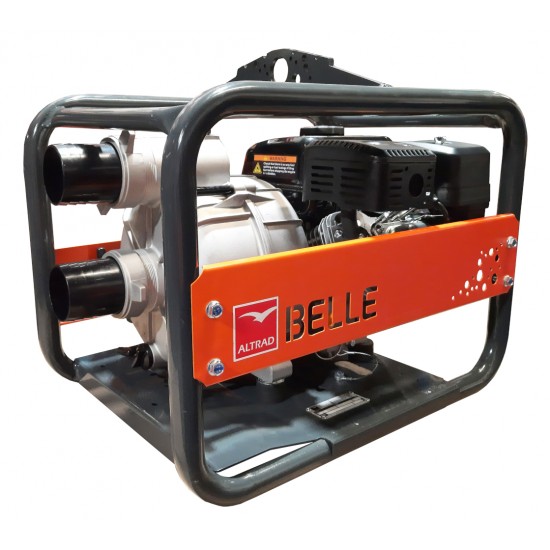

3" Semi-Trash Water Pump
The WPX 3/30 is a durable, powerful, petrol engine driven, 3" semi-trash water pump designed for a variety of residential, commercial and agricultural tasks. It is suitable for sandy or muddy water and debris up to 1" in diameter.- Suitable for pumping sandy or muddy water and debris up to 1†(25.4mm) in diameter.
- Robust large diameter frame for the harshest conditions.
- Stackable frame design with single point lifting to reduce environmental impact and minimize manual handling risk. Complete with securing pin for added safety.
- Can be stacked with Altrad Belle GPX 2700 & GPX 3400 Generators.
- Protection belly plate to aid use on soft ground.
- Cast-iron volute and impeller for long life performance and durability.
- High output capacity of 1000 ltr/min.
- Max. head height of 30m for use in a wide range of applications.
- Max. suction lift of 6m.
- Powerful Loncin/Belle G200F petrol engine.
- 3†suction and discharge ports.
- Removeable side guards for ease of access to service points.
- Easy to maintain and remove blockages on-site without tools.
- Customer colour options available.
| Ref | Model | Engine Model | Engine Power (Hp/kW) | Suction Port Dia. (In / mm) | Discharge Port Dia. (In / mm) | Max. Suction Lift (m) | Max. Total Head (m) | Max. Flow Rate (ltr/min) | Displacement (mm) | Fuel Tank Capacity (Ltr) | Oil Capacity (Ltr) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WPX330L01 | WPX 3/30 | Loncin/Belle G200F | 5.5 / 4.1 | 3 / 80 | 3 / 80 | 6 | 30 | 1000 | 196 | 3.6 | 0.6 | 44 |

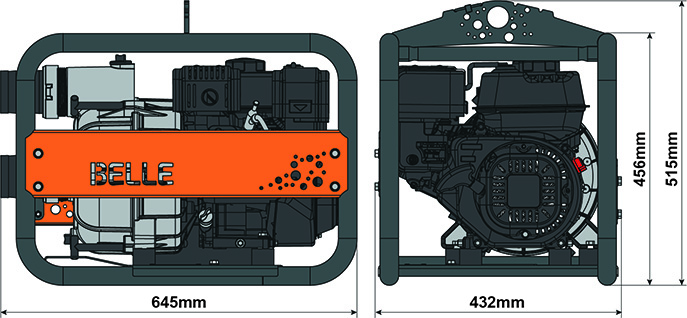

| STATIC DIMENSIONS | |||
 | |||
