TDX 650
- Model: TDX 650 Twin Drum Roller
- Weight: 775.00kg
- Dimensions: 2,272.00mm x 702.00mm x 1,730.00mm
£0.00
Ex Tax: £0.00
Description
A Twin-Drum Walk-Behind Roller with Hydrostatic drive system. The TDX 650 has a high compaction force but is also compact with well positioned controls making it easy to operate. Suitable for a wide range of soil and asphalt compaction applications.
- Highly responsive, low-maintenance Hydrostatic drive system.

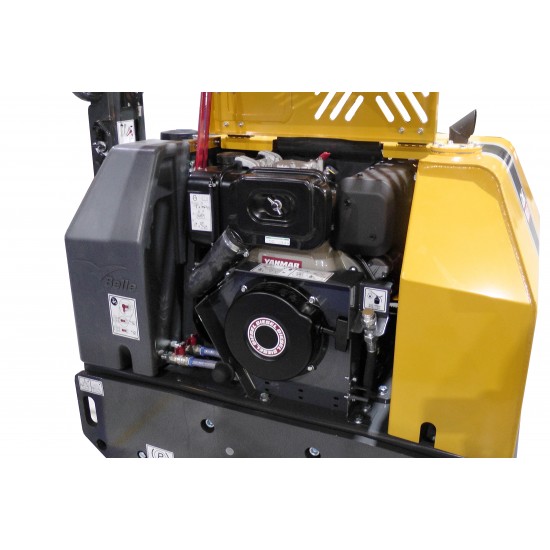

- High-powered, reliable, 10hp Air-Cooled Yanmar Diesel engine.
- 20kN high compaction force for productivity.
- Enclosed engine compartment with lockable canopy for secure, easy access.
- Recoil Start back-up.
- High-quality Hydraulic System components.
- 65 litre Water Tank with external gauge.

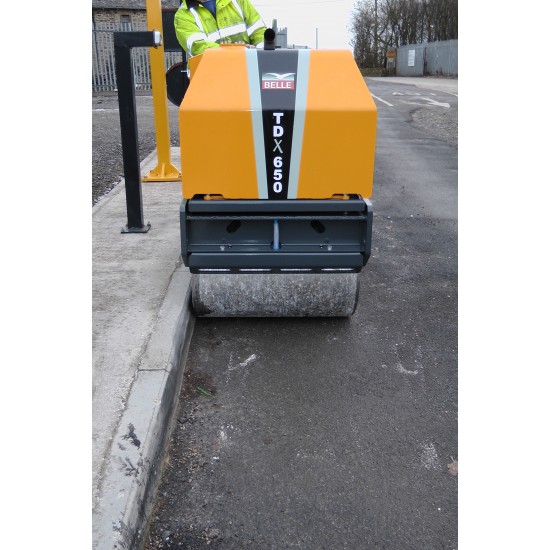

- Wall clearance on both sides with no overhang.
- Self-cleaning, adjustable Scraper Bars.
- 18 litre Hydraulic Oil Tank.
- Easy access, removable, front and read anti-corrosive water sprinkler system.
- Foldable handle with locking mechanism.
- Lockable Diesel fill access flap.
- Easy to service - Remote Oil Drain. Remote Oil Fill. Air Cleaner Access. Easy acces to key service points.
- Drain on Water Tank to prevent frost damage.
- Centrally located Lifting Eye and 4 x Strapping / Lifting Points.
- Parking Brake.
- Key Switch protection.
- Ignition Warning System.
- Customer colour options available.
- Optional Hourmeter available.
| Ref | Model | Engine Power (hp/kW) | Frequency (vpm) | Forward Travel Speed (km/hr) | Reverse Travel Speed (km/hr) | Force (kN) | Water Tank Capacity (Ltr) | Oil Tank Capacity (Ltr) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
TDX650GRY4 | TDX 650 Twin Drum Roller | Yanmar L100N Diesel 9.2 / 6.8 | 3300 | > 3.9 | > 2.1 | 20 | 65 | 18 | 775 |

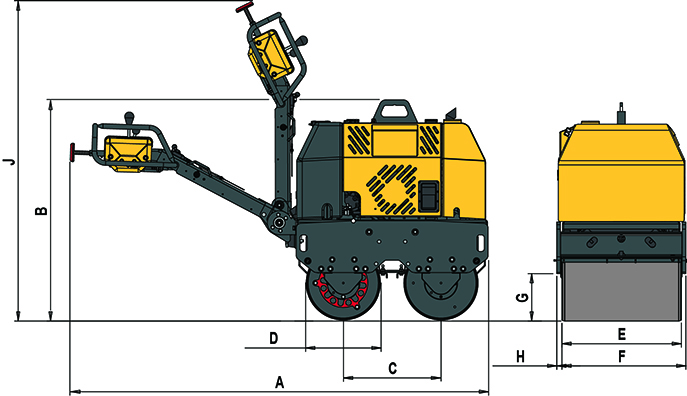

| STATIC DIMENSIONS | ||
 | ||
| TDX 650 | ||
| A - Overall Length | (mm) | 2272 |
| B - Overall Height | (mm) | 1093 |
| C - Wheel Base | (mm) | 530 |
| D - Drum Diameter | (mm) | 402 |
| E - Drum Width | (mm) | 650 |
| F - Overall Width | (mm) | 702 |
| G - Curb Clearance | (mm) | 258 |
| H - Lateral Overhang | (mm) | 28 |
| J - Height at Storage | (mm) | 1730 |
